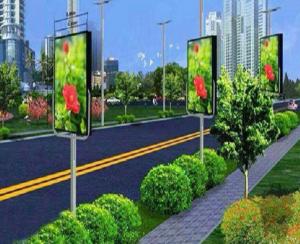

Street Lighting Pole Column Outdoor Media LED Poster Screen with Smart Phone Design P4 P5 P6
1. Intelligent Control:
Embedded LAN, WIFI and 3G intelligent management core modules, allowing ads to be controlled as they wish.2. Easy To Installation:
Once installed successfully, the AD picture and text information changed casually, saves the trouble of dismantling and installing billboards, but also saves resources.
2. High Protection Grade
High protection level before and after IP65/IP54, safe for outdoor use in all kinds of weather.
3. Easy To Maintain
Can be side open, back open, front maintenance (will be launched) and other maintenance methods, so that installation has more options.
4. Applicable Occasions
Applicable to pedestrian streets, light boxes, highways, communities and other places.
Warranty
A: The panel default warranty is one year. If you need 3 years warranty, the cost will add 15%~20%.
Payment receipt
A: We accept TT or west union. And you can pay 30% deposit for production, and 70% balance before shipment.
Delivery time
A: It depends on the order qty. 3~4 days for sample order, 5~7 days if order qty is ≤50pcs, 7~10pcs if qty is ≤ 100pcs. And over ≥100pcs, the lead time needs to be negociated.
Technical Specification:
| NO. | Item | Parameters |
| 1 | Model | AN-PX5-LAMP POSTER |
| 2 | Pixel Pitch(mm) | 5mm |
| 3 | LED Configuration | 1R1G1B |
| 4 | LED Type | SMD1921 |
| 5 | Screen Resolution | 40000dots/sqm |
| 6 | Module size(mm) | 160x160 |
| 7 | Module resolution(dots) | 32x32 |
| 8 | Scan method | 8 |
| 9 | Cabinet size(mm) | 800x1280 |
| 10 | Cabinet resolution(dots) | 160x256 |
| 11 | Cabinet material | Iron |
| 12 | Brightness(cd/sqm) | ≥6500 |
| 13 | Viewing angle | H:170°/ V:120° |
| 14 | Grey Scale | 14bit |
| 15 | Refresh rate(Hz) | ≥1920 |
| 16 | Ave. power consumption (W/sqm) | 245 |
| 17 | Max. power consumption(W/sqm) | 730 |
| 18 | IP grade | IP65 IP54 |
| 19 | controller | Novastar / Linsn |
| 20 | Maintenance | Front / Rear Service |
| 21 | Input Voltage(V) | AC 110V-220V +/-10% |
| 22 | Working humidity | 10~90%RH |
| 23 | Certificates | RoHS / CE / CCC |
Supply Ability
Supply Ability: 1100+pieces/pcs per Month
Packaging & Delivery
- Packaging Details
- LED module and accessories hard carton package
Flight case and wooden case package for cabinets.
- Port
- SHENZHEN CHINA
- LOGO
- Acceptable
- Lead Time :
-
| Quantity(Square Meters) | 1 - 100 | >100 |
| Est. Time(days) | 25 | To be negotiated |
Real products and projects overview
OUR SERVICE:
PRE-PRODUCING:
1. Get complete requirements of clients
2. To do a thorough analysis
3. Offer a most reasonable and scientific solution
4. Customized design
IN PRODUCING:
1. Producing progress updating for clients
2. Particular Installation CAD and Design Diagram for clients
AFTER SERVICE:
1. 2 years free maintenance
2. 7 days a week, 24 hours a day for 5 years on-line service for any technical support for any customers
3. Free training for customers in factory
4. Local Partner Installation Service
